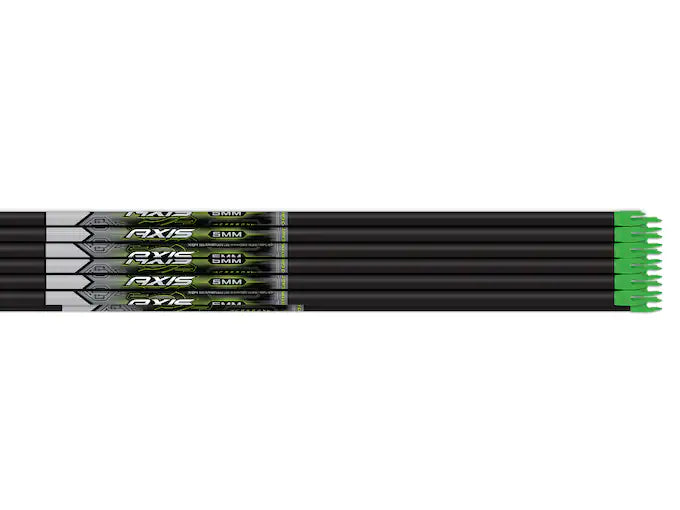

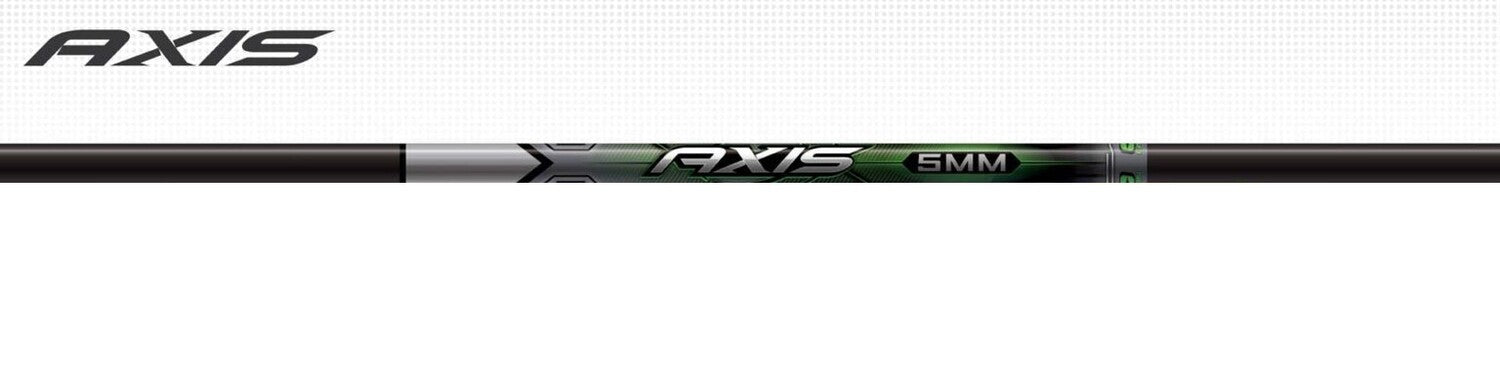

AXIS 5MM & MATCH GRADE Shafts (12x)
Super strong, micro-diameter carbon arrow that's a great choice for hunting, 3-D and outdoor target shooting
- 5MM micro (X) diameter
- Perfect blend of deep penetration and speed
- High-strength nanotube N-FUSED carbon composite fibers
- Straightness: ± .003"
- Pre-installed X Nock
- X HIT conventional inserts included
- Deep Six components sold separately
- Available sizes: 260 (11.5 gpi), 300 (10.7 gpi), 340 (9.5 gpi), 400 (9.0 gpi), 500 (8.1 gpi), 600 (7.2 gpi), 700 (6.1 gpi)
-Podium Archery can custom cut your arrow shafts for you. Please refer to the custom arrow builder to request a length.
| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28″ SPAN DEFLECTION IN INCHES |
STOCK LENGTH INCHES |
RPS POINT O.D. INCHES |
BROADHEAD ADAPTER RING (5 GRAINS) | O.D. INCHES |
5MM HALF OUT |
|---|
| 500 | 8.1 | 0.500 | 31 | 17/64 | BAR 3 | 0.258 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | BAR 4 | 0.264 | #1 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | BAR 5 | 0.267 | #1 |
| 300 | 10.7 | 0.300 | 32.5 | 9/32 | BAR 6 | 0.275 | #1 |
| 260 | 11.5 | 0.260 | 34* | 9/32 | BAR 6 | 0.280 | #2 |
Match Grade Version – The hands-down proven small diameter all-carbon arrow. Faster, Deeper, Deadlier
SPECIFICATIONS:
• X HIT 8-32 inserts (16 grains)
• Pre-installed X Nock
• Straightness: ± .001”
• High-strength carbon-composite fibers
Brass X HIT® 8-32 Break-Off Insert & Deep Six thread RPS sold separately
